- 規格型號：90627469
- 頻率：153.600KHZ
- 尺寸：5019MM
- 產品描述：CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振,具備超小尺寸優勢,可直接貼裝于PCB板表面,無需額外焊接空間,大幅節省電路板布局面積.減少了信號傳輸路徑損耗,增強了電路穩定性.
CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振
.png)
.png)
CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振
CC4V-T1A-153.600KHZ-9PF-30PPM作為一款專業陶瓷貼片晶振,頻率精準設定為153.600kHz,是電子設備低中頻時鐘信號的核心來源.負載電容嚴格控制在9pF,頻率偏差僅±30PPM,能為設備提供穩定的低頻時序基準,完美適配工業控制儀表,智能家居控制器,便攜式檢測設備等對低中頻時鐘信號有精準要求的產品,有效保障數據采集,信號處理的時序同步,避免因頻率偏差導致的設備功能異常.
.png)
CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振

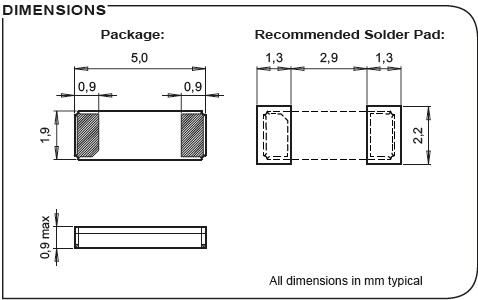

| 原廠型號 Originalmodel： | CC4V-T1A-153.600KHZ-9PF-30PPM | 品牌brand： | 微晶 |
| 型號名稱 Modelname： | CC4V-T1A黑色面陶瓷晶振 | Size/Dimension尺寸 | 5019mm |
| Type系列： | KHZ Crystal | 高度PackageHeight： | 0.9mm |
| 頻率 frequency： | 153.6KHZ | 溫度OperatingTemperature | -40°C ~ 85°C |
| Frequency Stability頻率穩定度 | - | 腳位Termination： | 2-Pad |
| frequencytolerance頻率容差 | ±30PPM | 封裝類型PackageType： | 2-smd |
| Loadcapacitance 負載電容 | 9pF | 最小包裝數MPQ： | 1000 |
.png)
CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振
.JPG)
CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 100 kHz | 100 PPM |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| 202684-MC03 | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| 202273-EA00 | Micro微晶晶振 | Clock Oscillators | 128 MHz | |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro微晶晶振 | Clock Oscillators | 32.768 kHz | |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
