- 規格型號：87491856
- 頻率：37.4MHz
- 尺寸：1210mm
- 產品描述：LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振,體積小巧,可輕松集成到空間受限的電子設備中,如微型智能傳感器,小型穿戴設備配件,既不占用過多主板空間,又能穩定輸出時鐘信號,助力設備小型化設計.

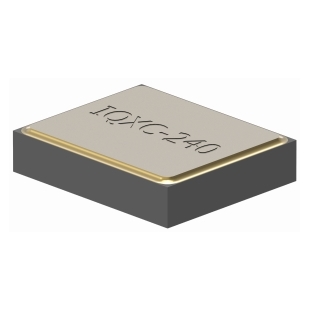

LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振
.png)
.png)
LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振
LFXTAL081314Reel以reels封裝為核心優勢,完美適配電子設備自動化貼片生產線,能減少人工干預,提升組裝效率,尤其適合消費電子,工業控制領域的批量生產場景,如智能家電控制器,小型工業檢測模塊,為其提供穩定時鐘信號的同時,保障量產產品的頻率一致性.IQXC-240石英晶體憑借卓越的頻率精度(誤差可控制在±10ppm內)與低相位噪聲特性,成為通信設備的核心頻率器件,可用于4G/5G小型基站模塊,無線通信路由器,為信號傳輸提供精準載波頻率,保障通信信號的穩定與清晰.針對智能手環,智能手表晶振等穿戴設備的空間限制,IQD無源晶振采用微型封裝(如3225,2520規格),體積小巧且重量輕,可輕松集成到穿戴設備主板中,在提供精準計時功能的同時,不影響設備的便攜性與佩戴舒適度.
.png)
LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振
| 原廠型號 Originalmodel： | LFXTAL081314Reel | 品牌brand： | IQD晶振 |
| 品牌brand： | IQD基站晶振 | ESR（等效串聯電阻）Resistance) | 50 kOhm |
| 型號名稱 Modelname： | IQXC-240 | 溫度OperatingTemperature | -30°C to 85°C |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 37.4MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | ±15ppm | 高度PackageHeight： | 0.33mm |
| frequencytolerance頻率容差 | ±7ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 5.00pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 1210mm | 安裝方式MountingStyle： | SurfaceMount |
.png)

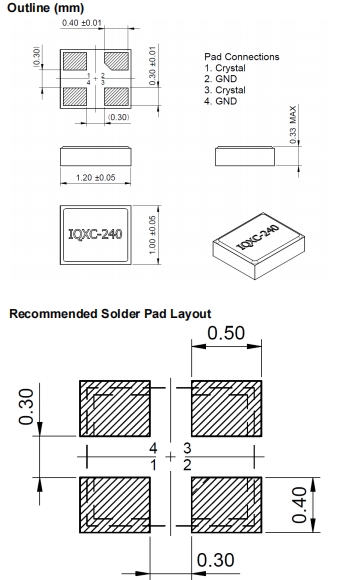

LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振
LFXTAL081314Reel,IQXC-240石英晶體,IQD無源晶振
| LFXTAL081314Reel | IQXC-240 | 37.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL081316Reel | IQXC-240 | 38.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL072539Reel | IQXC-26 | 24.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL078691Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL081608Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081608Reel | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081609Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083890Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL052799Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL066742Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL066742Reel | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069296Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL070729Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±15ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081614Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081614Reel | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072541Cutt | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL072541Reel | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081610Cutt | IQXC-26 | 27.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072302Cutt | IQXC-26 | 30.0MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081612Cutt | IQXC-26 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL056523Cutt | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL056523Reel | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Cutt | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Reel | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL079322Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL079322Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081613Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083149Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL072304Cutt | IQXC-26 | 37.4MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081616Cutt | IQXC-26 | 37.4MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL063312Cutt | IQXC-26 | 40.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL069527Cutt | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069527Reel | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081619Cutt | IQXC-26 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL069528Cutt | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069528Reel | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081620Cutt | IQXC-26 | 48.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL078795Cutt | IQXC-42 | 16.0MHz | ±15ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081780RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -30°C to 85°C | 8.00pF |
| LFXTAL081781RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081821Cutt | IQXC-42 | 16.0MHz | ±10ppm | ±15ppm | -30°C to 85°C | 12.00pF |
| LFXTAL082887RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±30ppm | -40°C to 105°C | 10.00pF |
| LFXTAL059585Cutt | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585Reel | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585RL3K | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL064174RL3K | IQXC-42 | 24.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL066139Cutt | IQXC-42 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069476RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 12.00pF |
| LFXTAL069493Cutt | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493Reel | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072577RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076411Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL076411RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL081531RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081646RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL090516RL3K | IQXC-42 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL054026Cutt | IQXC-42 | 25.0MHz | ±25ppm | ±30ppm | -40°C to 85°C | 18.00pF |
