- 規格型號：67851305
- 頻率：25 MHz
- 尺寸：2.50mm x 2.00mm
- 產品描述：8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振,無論顯示屏尺寸,分辨率,應用場景如何變化,其穩定的25.000MHz頻率輸出都能精準匹配不同驅動芯片的時鐘需求,助力顯示屏設備實現多樣化功能與穩定性能.

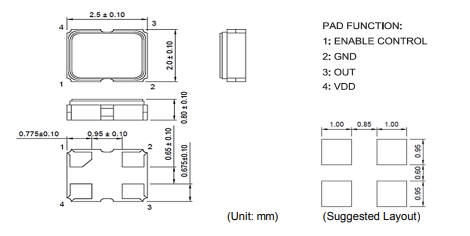

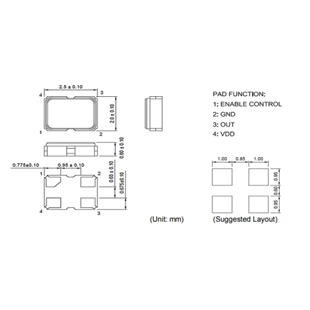

8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振
.png)
.png)
8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振
8WE-25.000MDM-T是專為顯示屏設備量身研發的核心時鐘組件,其輸出頻率精準鎖定在25.000MHz,完全符合顯示屏信號傳輸對時鐘精度的嚴苛標準.在實際應用中,它能為液晶顯示器(LCD)的T-Con板,OLED顯示屏的驅動IC提供穩定的時鐘基準,精準同步像素點的開關時序與數據傳輸節奏,從根源上避免因時鐘信號波動導致的畫面卡頓,拖影,色彩失真等問題.無論是消費級設備中4K/8K高清電視的高速畫面刷新,還是工業設備晶振中精密儀器顯示屏的實時數據顯示,該晶振都能保障顯示屏持續流暢運行,是連接"信號處理"與"畫面呈現"的關鍵橋梁,廣泛適配消費級與工業級顯示屏的時鐘需求.
.png)
8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振
| 原廠型號 Originalmodel： | 8WE-25.000MDM-T | 品牌brand： | TXC |
| Manufacturer品牌 | TXC | OperatingTemperature溫度 | -40°C ~ 125°C |
| Series型號 | 8WE | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.90mm |
| Frequency頻率 | 25 MHz | Termination 腳位 | 4 pad |
| 輸出方式 Output： | CMOS輸出晶振 | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 1.8V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±50ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 2.50mm x 2.00mm | 最小包裝數MPQ： | 3000 |
.png)
8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振
| 7XZ-32.768KBE-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7Z-38.400MBG-T | TXC CORPORATION | 7Z | TCXO | 38.4 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| 7Z-26.000MBG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| CX-100.000MBE-T | TXC CORPORATION | CX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7X-50.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-40.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 8W-24.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 2.5V | ±50ppm | -10°C ~ 70°C |
| 7C-26.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7C-28.63636MBB-T | TXC CORPORATION | 7C | XO (Standard) | 28.63636 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7X-19.200MBA-T | TXC CORPORATION | 7X | XO (Standard) | 19.2 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 8WE-33.333MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 7X-26.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 8WE-24.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 7X-26.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7X-48.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| AU-12.288MBE-T | TXC CORPORATION | AU | XO (Standard) | 12.288 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| AU-24.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| AU-50.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-26.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7C-25.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| BX-100.000MBE-T | TXC CORPORATION | BX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7N-20.000MBP-T | TXC CORPORATION | 7N | TCXO | 20 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| 7N-12.800MBP-T | TXC CORPORATION | 7N | TCXO | 12.8 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| 7X-25.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-4.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 4 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 8WE-25.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 8WE-38.400MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 8NE-25.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 8WE-24.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| AU-25.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| AU-26.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7Z-26.000MDS-T | TXC CORPORATION | 7Z | VCTCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±2ppm | -30°C ~ 85°C |
| 7Z-26.000MDG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb | -30°C ~ 85°C |
| BR-61.4400MBE-T | TXC CORPORATION | BR | VCXO | 61.44 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 8WE-33.333MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 8NE-24.576MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 8WE-30.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 8NE-24.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 8WE-27.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| TD-7.3728MBD-T | TXC CORPORATION | TD | XO (Standard) | 7.3728 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7XZ-32.768KBA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7XZ-32.768KDA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±25ppm | -10°C ~ 70°C |
| 7W-36.000MBB-T | TXC CORPORATION | 7W | XO (Standard) | 36 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 8NE-25.000MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm | -40°C ~ 125°C |
| 7X-38.400MBE-T | TXC CORPORATION | 7X | XO (Standard) | 38.4 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W-10.000MBE-T | TXC CORPORATION | 7W | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7X-30.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7X-26.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-50.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 8W-26.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 8W-13.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 13 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7X-30.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 8W-20.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7C-40.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 2.5V | ±50ppm | -10°C ~ 70°C |
| 7C-24.576MBA-T | TXC CORPORATION | 7C | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 8NE-24.576MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 8WE-20.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
| 8NE-27.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 3.3V | ±50ppm | -40°C ~ 125°C |
